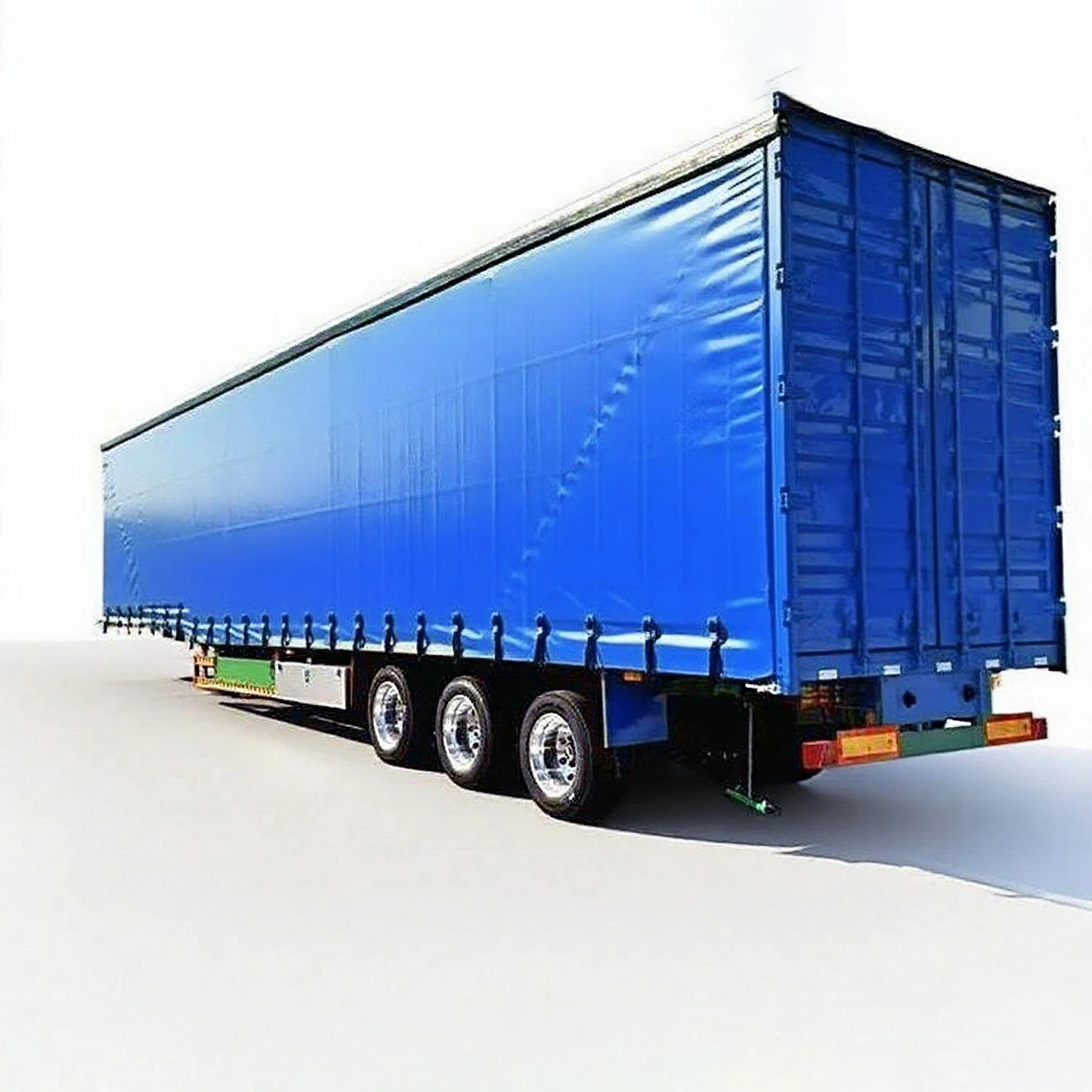

High Capacity 53ft Enclosed Dry Van Trailer with BPW Suspension

Our dry van trailer series represents the pinnacle of modern logistical efficiency. These trailers are engineered to meet the rigorous demands of ports, infrastructure, and international trade across more than 60 countries.

Precision Engineering and Performance

Fuyuan utilizes advanced CAD/CAE systems, laser cutting, and robotic welding to ensure that every dry van trailer provides maximum reliability and structural integrity.

Optimized Loading and Speed

• Rapid Accessibility: The side curtain design allows both sides to be fully opened within 5 minutes, enabling multiple forklifts to operate simultaneously.

• Maximized Volume: By utilizing standardized pallets and optimized cargo layouts, the container volume is maximized while maintaining safe axle loads.

• Versatile Cargo Support: These units are ideally suited for transporting palletized goods, including auto parts, beer, and beverages.

Lightweight and Heavy-Duty Build

• Increased Payload: By replacing hard side panels with flexible, soft tarpaulin materials, the vehicle weight is reduced by 1,000kg to 1,500kg compared to a box car, significantly increasing overall loading capacity.

• Weather Protection: Despite the lightweight side curtains, the trailer maintains the rain-proof and dust-proof features essential for a secure dry van trailer.

• Premium Components: Every unit is equipped with industry-leading parts, including high-strength Q345B steel main beams, Wabco valves, and Jost brand landing gear.

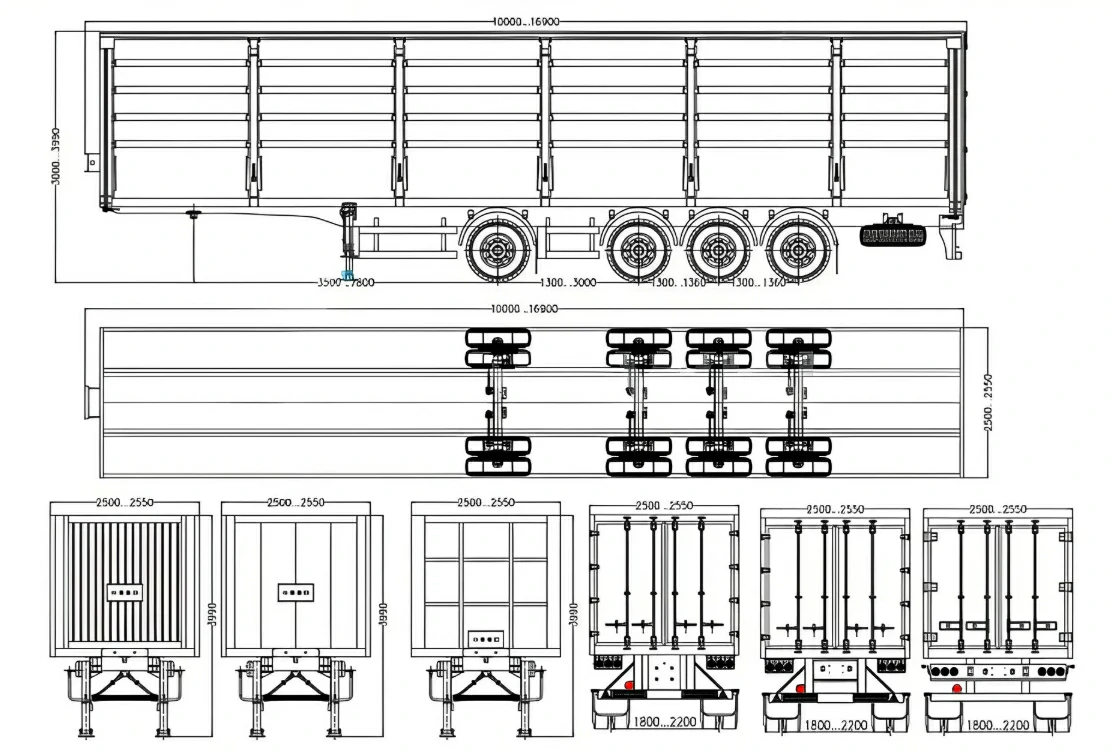

Technical Specifications

We provide flexible manufacturing to accommodate various international standards, including the 53 ft dry van trailer and 45 ft configurations.

Feature	Specification Details
Name	Side Curtain Van Box Trailer
Loading Capacity	30 tons to 100 tons
Main Beam	Q345B Steel; 500mm Height
Axle Options	13T / 16T FUWA or BPW
Suspension	Mechanical (American/German) or Air Suspension
Braking System	Wabco relay valves with T30/30 spring brake chambers
Platform	3mm chequered steel plate
Customization	Dimensions and configurations available upon request

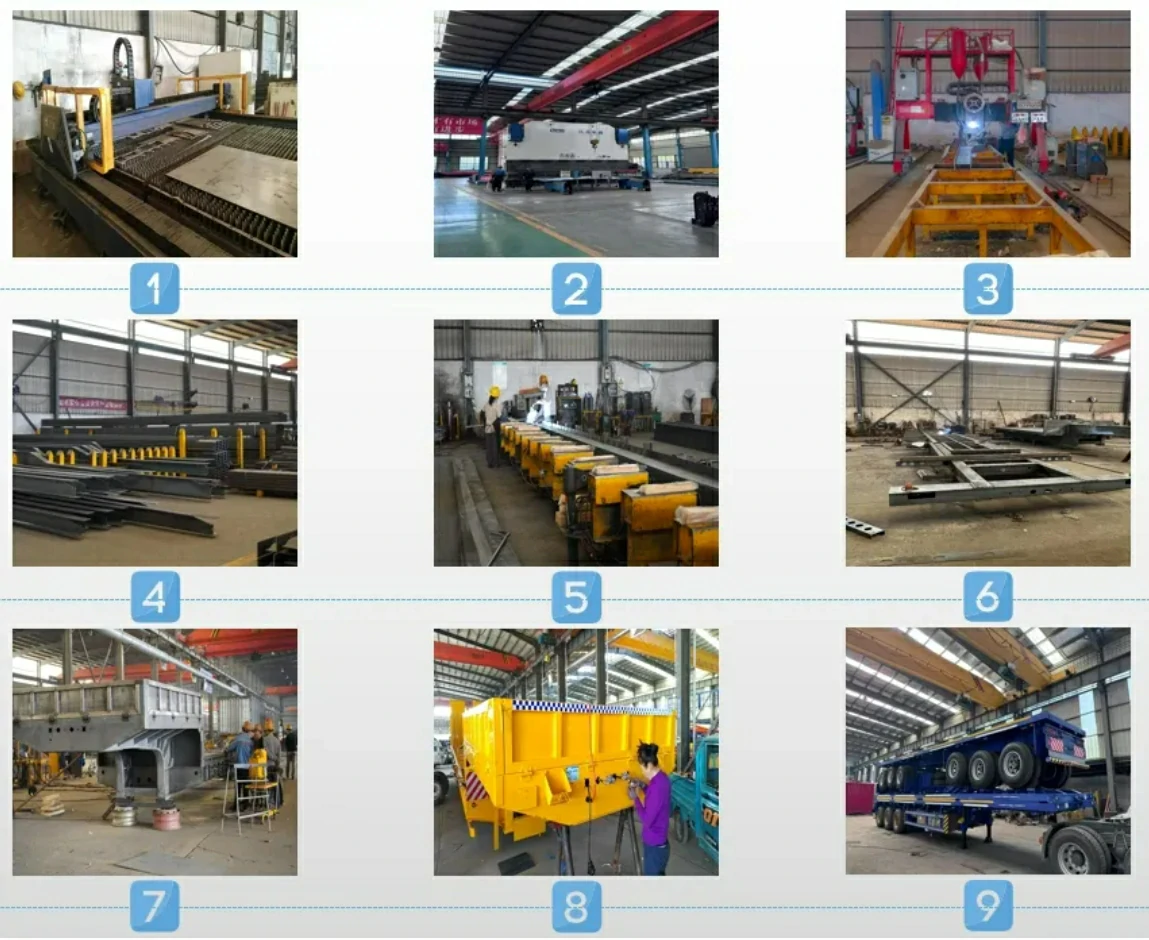

Production Process

Step 1: Precision Material Cutting – Using advanced laser cutting systems to ensure accuracy in steel plate preparation.

Step 2: Component Pressing – Heavy-duty machinery is used to press and shape structural components.

Step 3: Automated Welding – High-precision robotic welding technology is utilized for the primary frame construction.

Step 4: Beam Preparation – Industrial beams are organized and staged for the assembly phase.

Step 5: Specialized Welding – Skilled technicians and automated systems perform detailed welding on specific structural sections.

Step 6: Chassis Frame Assembly – The main skeleton and chassis of the trailer are integrated and aligned.

Step 7: Body Integration – The upper cargo body or specialized trailer structure is mounted onto the heavy-duty chassis.

Step 8: Final Finishing and Painting – The vehicle undergoes final coating and component installation in a standardized facility.

Step 9: Quality Inspection and Delivery – Completed trailers undergo a final smart inspection before being dispatched to global clients.

About Shandong Fuyuan

Shandong Fuyuan operates a 60,000-square-meter modern facility dedicated to intelligent production and global sales. As a benchmark in the industry, we integrate smart inspection and advanced manufacturing to deliver safer, smarter, and more efficient semi trailer truck solutions worldwide.
