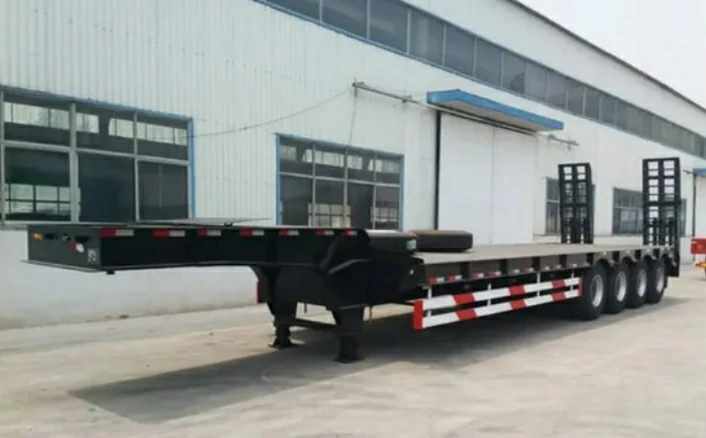

Drop Deck Flatbed Semi Trailer for Over-Height Machinery & Heavy Equipment Transport

Step Deck Semi Trailer for Over-Height Machinery & Heavy Equipment Transport

30–100T Heavy Load Capacity – Built for excavators, transformers, drilling rigs, and oversized machinery transport
Low Deck Design – Improved clearance for bridges, tunnels, and over-height cargo compliance
High-Strength Steel Structure – Q345/T700 steel with titanium reinforcement for maximum durability
Advanced Welding & Coating – Submerged arc welding + electrophoretic coating for long service life and corrosion resistance
Stable & Safe Operation – Optimized structure reduces tipping risk and improves road stability under heavy loads
Premium Global Components – Equipped with FUWA, BPW, JOST, and WABCO systems for reliable performance

Product Detail

Drop deck semi trailer is a specialized version of our standard flatbed, engineered with a lower deck height to accommodate over-height cargo that would exceed legal transport limits on conventional trailers. It is the preferred solution for transporting excavators, drilling rigs, transformers, and large-scale industrial machinery.

Key Technical Advantages

Superior Material and Toughness

Constructed from high-strength, full-thickness steel with a titanium content of 0.98‰, the trailer delivers exceptional toughness and structural integrity under heavy dynamic loads. This precise metallurgical balance reinforces the main beam and frame, making it ideal for demanding mining and construction applications.

Heavy-Duty Loading Capacity

Designed for versatility, our flatbed semi trailer range offers loading capacities from 30 to 100 tons, meeting the transport requirements of oversized machinery and heavy equipment.

Advanced Manufacturing Craftsmanship

Main Beam: Automatic submerged arc welding ensures deep penetration and flawless weld joints for superior strength.
Surface Treatment: Professional shot blasting removes rust and welding residues for improved coating adhesion.
Durability: Electrophoretic coating combined with premium baking paint creates a corrosion-resistant surface with protective performance lasting over 10 years.

Premium Components and Safety

We integrate globally recognized components, including FUWA/BPW axles, JOST landing gear and kingpins, and WABCO braking valves. The emergency brake system features widened brake pads and double air chambers for enhanced stopping power under heavy loads.

Technical Specifications (Customizable)

Feature	Step Deck / Drop Deck Specification
Loading Capacity	30 Tons to 100 Tons (Customized)
Deck Configuration	Lowered deck height for over-height cargo stability
Main Beam Material	High-Tensile Steel Q345 / T700
Beam Dimensions	Height: 500mm; Upper: 16mm / Middle: 10mm / Lower: 18mm
Platform Deck	3mm to 4mm Heavy Duty Checkered Plate
Axles	2 / 3 / 4 Axles (13T/16T/20T) FUWA, BPW or Other Brands
Tires	12R22.5 or 315/80R22.5 (Linglong, Triangle, Double-Coin)
Suspension	Heavy-duty Mechanical Leaf Spring or Air Suspension
Landing Gear	JOST 28T Two-Speed / Standard Brand
Braking System	WABCO Emergency Valve with Double Air Chambers
Accessories	Optional Removable Breast Boards, Stakes, or Twist Locks

Why Choose Fuyuan Step Deck Solution?

Low Center of Gravity
The lowered platform improves transport stability, reducing tipping risks when hauling tall or top-heavy machinery.
Increased Clearance
Step deck trailer semi is specifically designed to pass through tunnels, underpasses, and bridges that standard flatbeds may not clear, making it ideal for over-height transport.
Versatility for Multiple Industries
Suitable for excavators, drilling rigs, transformers, and construction machinery, it can also be equipped with removable stakes for timber transport or twist locks for specialized container hauling.
Customization Support
For customers seeking a step deck semi trailer for sale, Fuyuan support full customization, including extendable drop deck models for extra-long cargo and Superlink configurations for maximum transport efficiency.
