Heavy-Duty 4 Axle 53ft Curtain Side Trailer for Sale

Fuyuan 53 ft Curtain Side Trailer: Maximum Volume & Efficiency

Fuyuan’s 53 ft curtain side trailer for sale is the ultimate solution for high-capacity logistics, offering the massive interior volume of a standard 53ft van with the superior accessibility of a flatbed.

Extra-Large Payload Capacity: Optimized for 53ft long-haul routes, allowing for maximum pallet density and a loading weight of up to 50,000kg.
1,500kg Weight Advantage: Engineered to be significantly lighter than traditional rigid box trailers, reducing tare weight by over a ton to increase your legal cargo capacity per trip.
Rapid Side-Loading System: Features a high-tenacity sliding PVC curtain with a top guide rail, enabling full-side access for forklift loading in under 5 minutes.
All-Weather Cargo Security: The fully enclosed, dust-proof, and rain-proof compartment provides total protection for high-value goods like electronics, auto parts, and appliances.
Customized Brand Visibility: The expansive 53ft side curtains serve as a mobile billboard, offering high-definition custom printing to promote your company’s image across the road.
Precision Engineering: Built on a 500mm high-strength steel main beam with premium Fuwa/BPW axles, ensuring stability and safety even at full capacity.

Send email to us

Product Detail

Shandong Fuyuan offers the high-capacity 53 ft curtain side trailer for sale, engineered specifically for markets requiring maximum volume and rapid turnaround. This premium transport solution combines the immense cubic capacity of a 53ft dry van with the unmatched loading efficiency of a flatbed, making it the top choice for large-scale 3PL and cross-border logistics.

Key Advantages & Innovative Features

Unrivaled Loading Efficiency & Speed

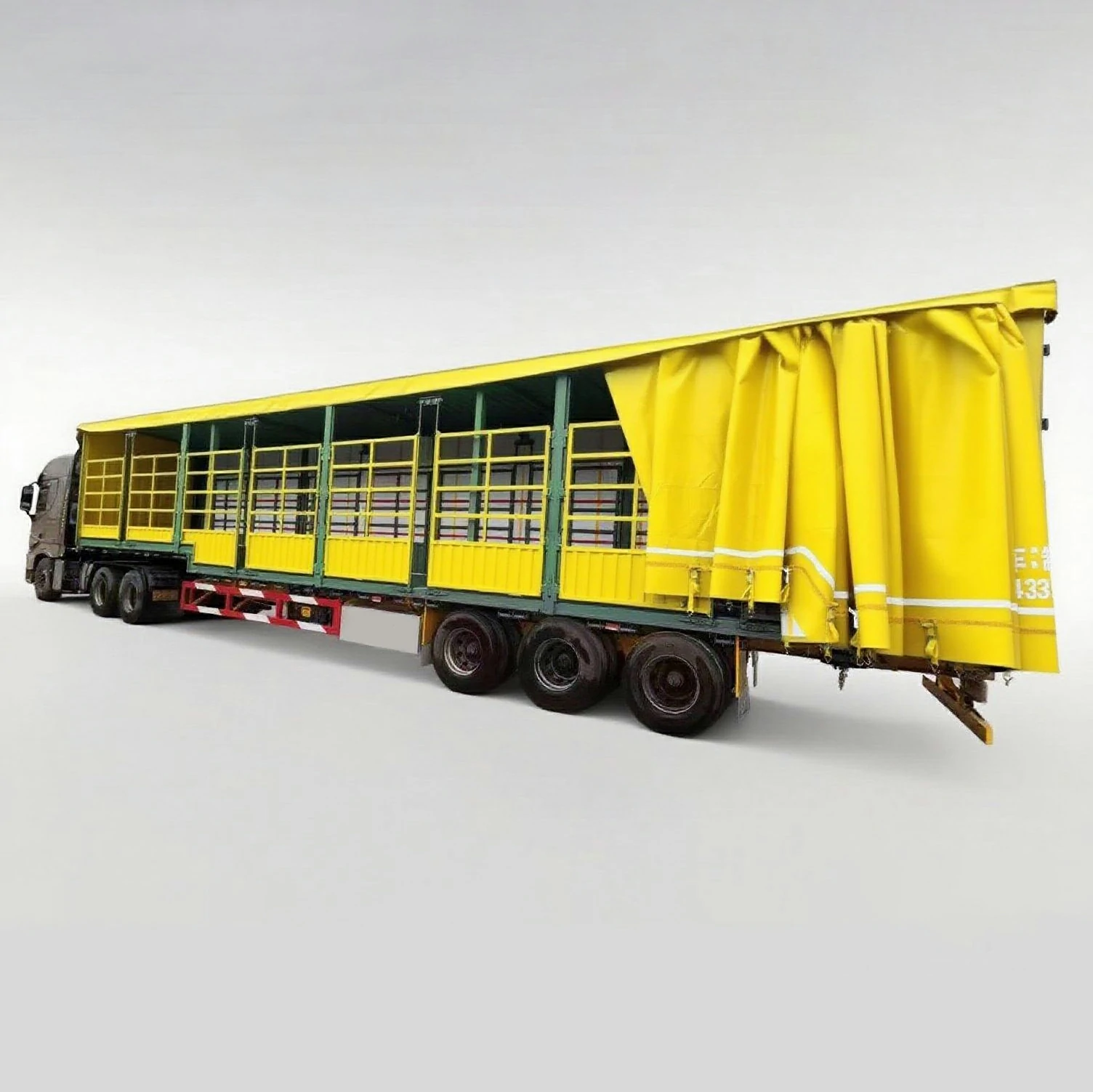

The 53 ft curtain side trailer for sale features a flexible tarpaulin system with top guide rails and bottom locking structures. This allows both side curtains to be retracted in minutes, enabling multiple forklifts to load or unload standardized pallets simultaneously. A full 53ft load can typically be processed in under 5 minutes.

Advanced Lightweight Engineering

By replacing heavy rigid side panels with high-tenacity flexible curtains, our 53ft model is 1000kg to 1500kg lighter than a standard hard-side box trailer. This weight saving translates directly into a higher payload capacity, allowing you to transport more goods per trip without exceeding axle weight limits.

All-Weather Protection & Security

The fully enclosed compartment provides a weather-proof and dust-proof environment. The high-density PVC-coated curtains are secured with industrial-grade tensioners, ensuring your cargo—from electronics and auto parts to consumer beverages—remains shielded from the elements.

Brand Promotion on the Move

The expansive flat surface of the side curtains serves as a mobile billboard. Fuyuan offers customized, high-definition printing for exquisite patterns and logos, significantly enhancing your brand’s visibility across the transportation network.

Technical Specifications

Feature	Specification Details
Model Type	53 ft Curtain Side Trailer for Sale
Overall Dimensions	16150mm x 2500mm x 4000mm (Customizable)
Loading Capacity	40,000kg - 60,000kg
Tare Weight	Approx. 7,500kg (Ultra-lightweight design)
Main Beam	500mm height; Q345B High-strength steel (14mm/8mm/16mm)
Axle Brand	3 Axles; Fuwa / BPW / SAF Brands
Suspension	Heavy-duty Mechanical or Air Suspension (Optional)
Curtain Material	Reinforced PVC-coated flexible vinyl (Custom colors/patterns)
Brake System	Dual-line pneumatic with WABCO ABS/Relay Valve
Platform	3mm Diamond plate (Chequered steel)
Tires	12R22.5 / 385/65R22.5 (Multiple sizes available)
Landing Gear	28-Ton heavy-duty manual operation

Why Choose Fuyuan?

Operating out of a 120-acre facility, Shandong Fuyuan integrates scientific R&D with intelligent manufacturing. Our curtain side trailer for sale is a result of precision engineering designed to optimize axle loads and reduce vehicle wear. Every unit undergoes rigorous testing and carries the national mandatory 3C certification, ensuring your investment is reliable, durable, and ready for international export to markets like Russia, Vietnam, and beyond.
