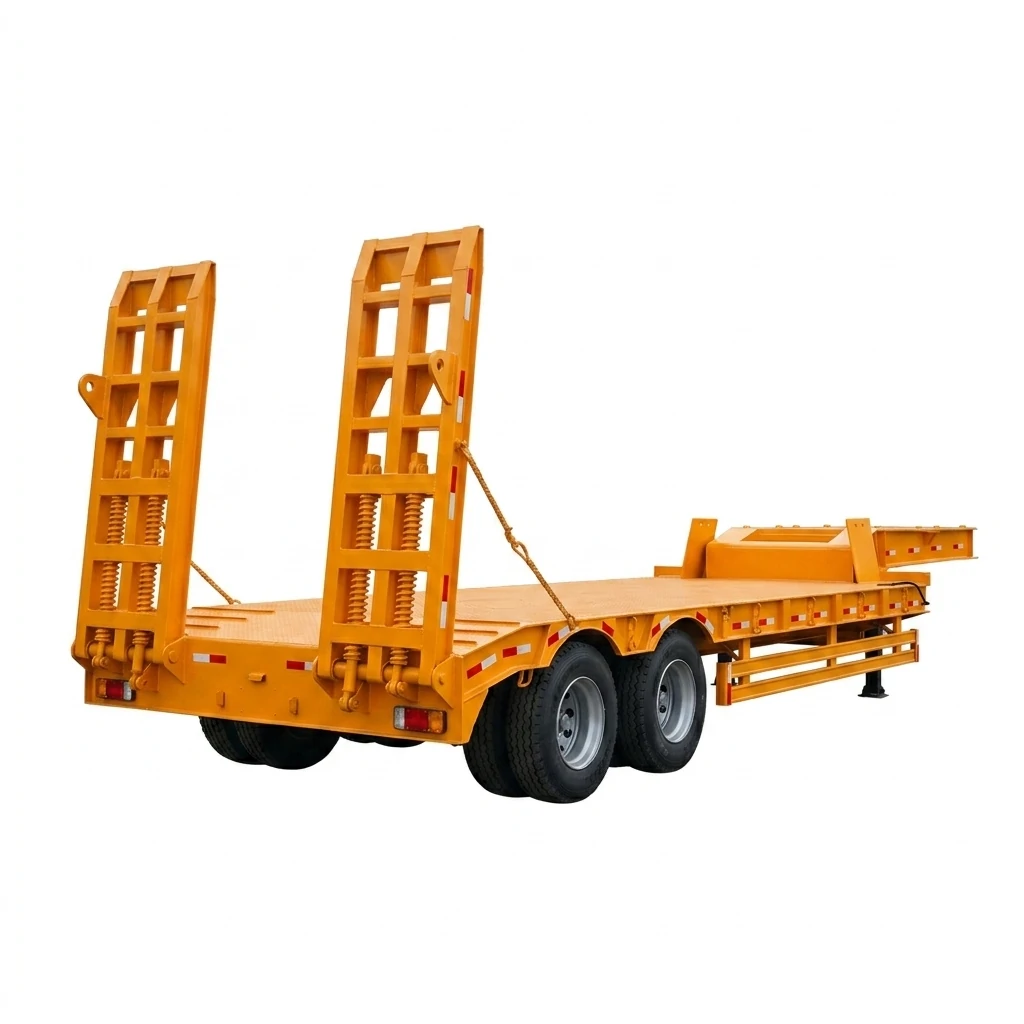

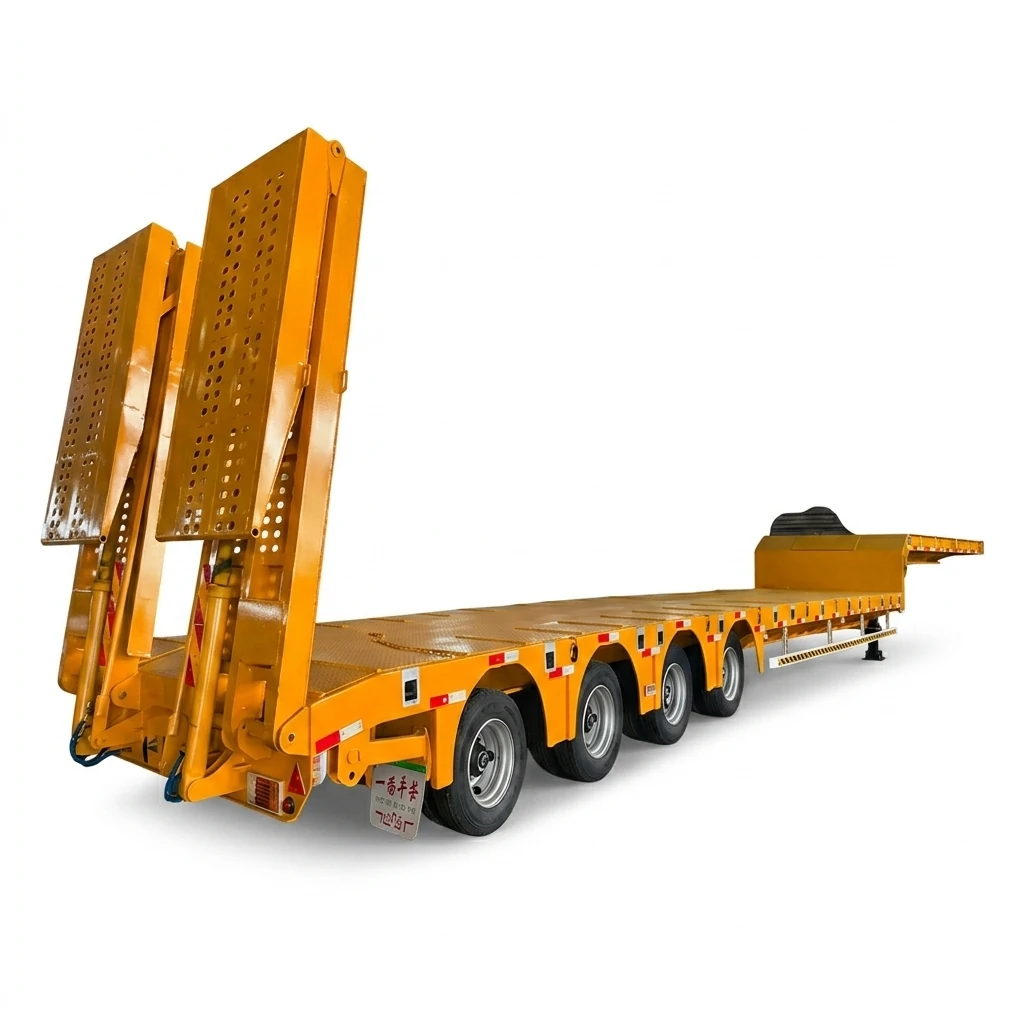

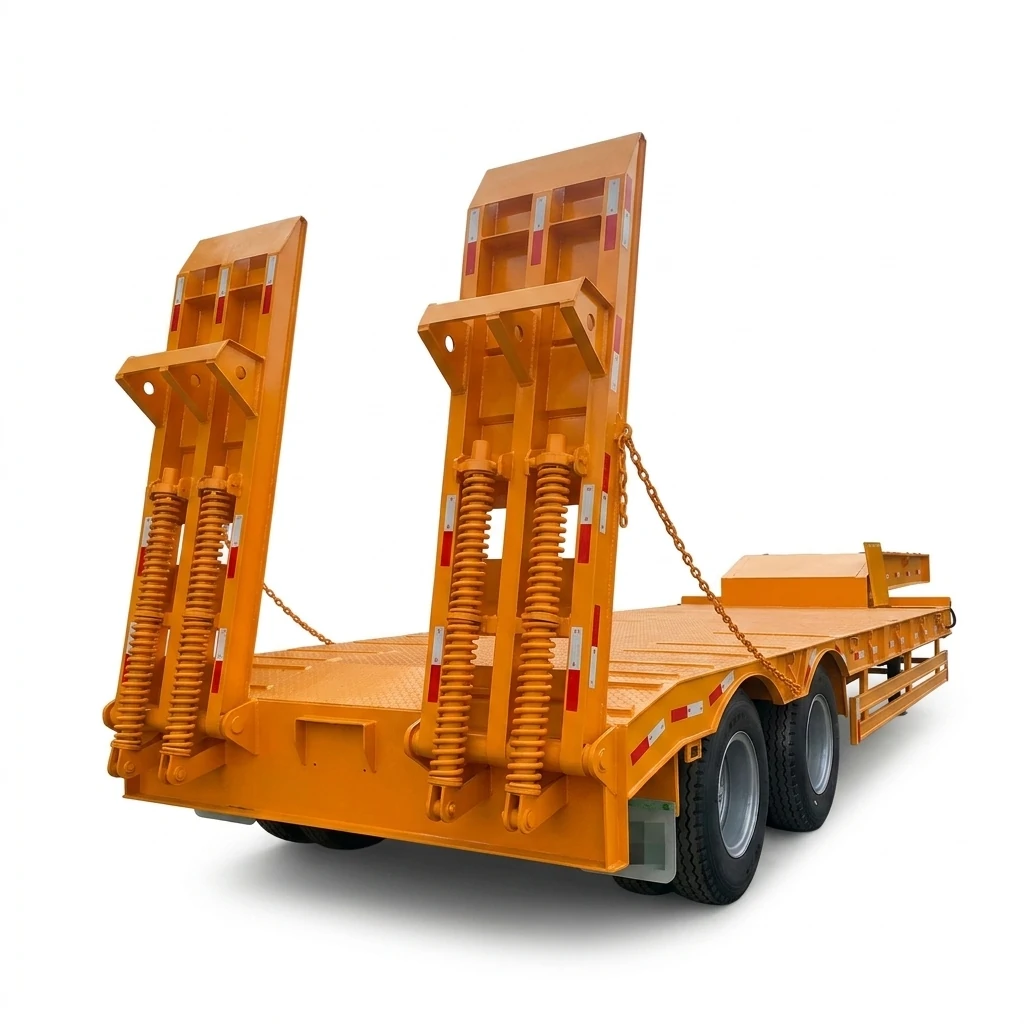

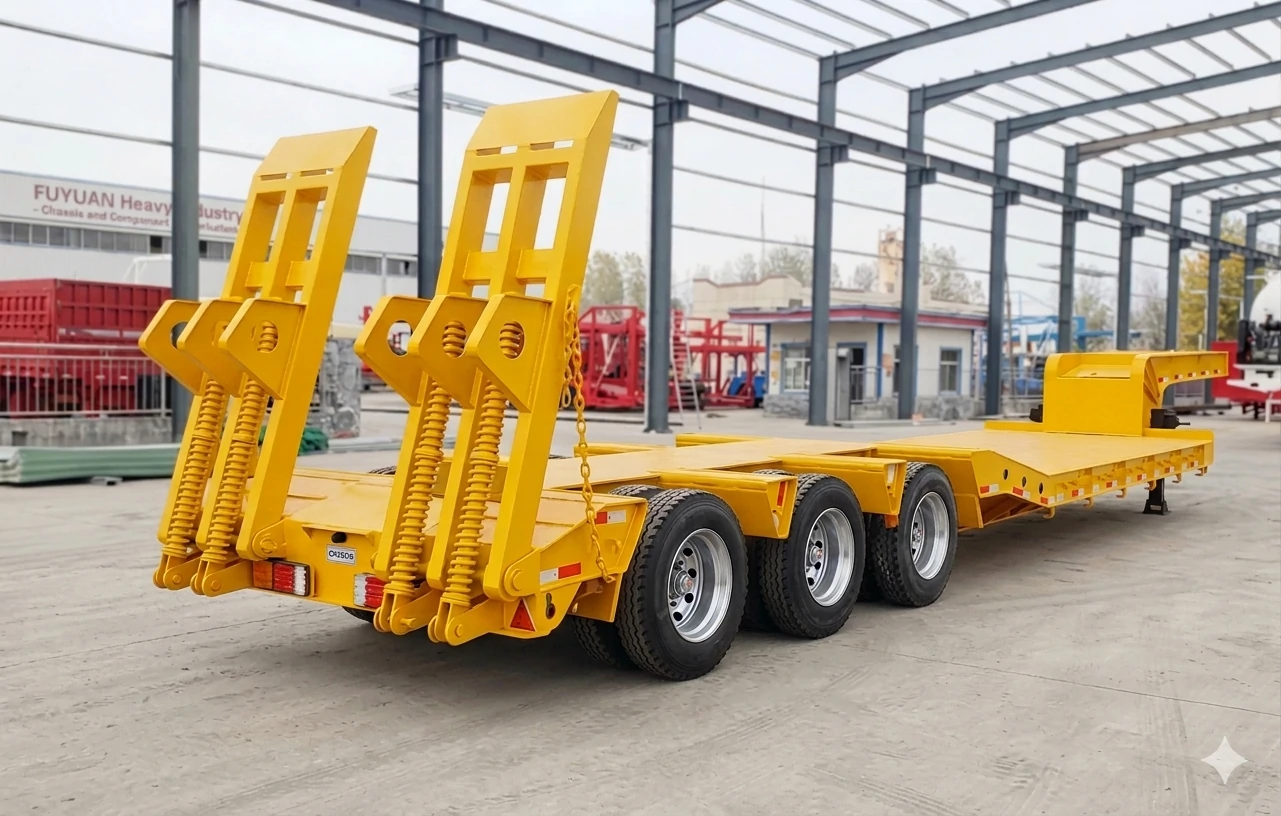

80 Ton 4 Axles Lowbed Semi Trailer with High Tensile Q345B Steel Main Beam

80T Rated Payload: Optimized for heavy excavators, cranes, and industrial equipment.
Q345B Steel Beam: Reinforced structural design for zero-deflection performance.
Automated Manufacturing: Robot-welded joints for 100% reliability and safety.
Versatile Configuration: Selectable brands (FUWA/BPW/JOST) and customizable dimensions.

Product Detail

80 Ton 4 Axles Lowbed Semi Trailer is designed for extreme loading conditions, offering a massive 80,000kg payload capacity. Built with a reinforced high-tensile Q345B steel main beam and four high-performance axles, this lowboy ensures maximum structural integrity and stability for transporting heavy excavators, cranes, and large-scale industrial equipment across challenging terrains.

Technical Specifications

Product Name	4 Axle Lowbed Semi Trailer
Size(mm)	1400030001100
Payload	80000KG
Plate	5mm checked plate
Axle	4 * 13ton
Ladder	Hydraulic ladder or Mechanical spring ladder
Main beam	Height: 500mm, upper plate:16mm, middle plate:8mm, down plate:18mm. (Material: Q345B Steel)
Side beam	250mm I beam,20mm channel steel ( Material is Q235steel )
Bottom Platform	4mm thickness diamond steel plate
Suspension	Mechanical suspension (Air suspension optional)
Leaf spring	90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12
Tire	12R22.5 / 11.00R20 8pcs (Other size optional)
Kin pin	2"/3.5" bolt type
Braking system	Double air chamber ,brake valve,45L air tanks ,ABS optional
Electrical	LED light , 7 ways ,24V
Accessory	One tooling box with a set of standard trailer tool
Painting	Rust removal, application of anti-rust primer, and spraying with polyurethane topcoat; custom colors are available.

Explore more semi lowbed trailer.

Core Advantages & Manufacturing Excellence

1. High-Tensile Q345B Steel Architecture

The backbone of our 80-ton trailer is a specialized 500mm main beam forged from Q345B high-strength steel. This provides an exceptional strength-to-weight ratio, ensuring the trailer resists sagging and torsional stress even under maximum load.

2. Quad-Axle Precision Performance

The four-axle configuration distributes the 80-ton weight evenly, reducing ground pressure and improving road safety. Buyers can specify FUWA or BPW axle systems, which feature advanced low-alloy beams with no welding points for a maintenance-free lifespan of up to 400,000 kilometers.

3. Advanced Robotic Welding & Durability

Utilizing national-standard robotic welding technology, every joint is meticulously fused. Our process includes 30 minutes of additional welding time compared to standard models, guaranteeing the best structural results.

4. 9-Year Anti-Rust Electrophoresis Painting

To withstand harsh environments and maritime transport, the entire trailer frame undergoes a full-body electrophoresis painting process. This provides 360-degree coverage and paint adhesiveness that lasts up to 9 years.

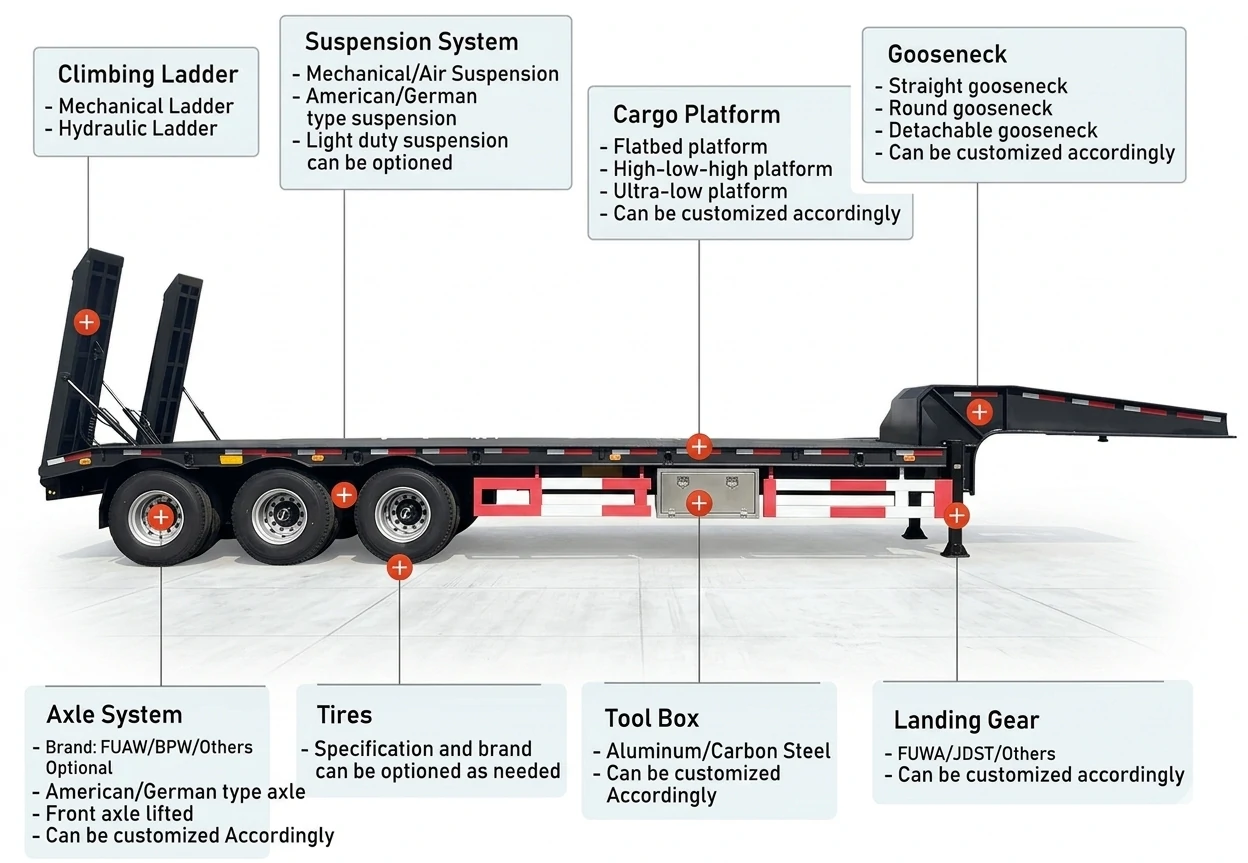

Professional Customization Options

Cargo Platform: Choose between Flatbed, High-Low-High (Drop Deck), or Ultra-low configurations. Dimensions can be tailored to your specific regional transport regulations.
Gooseneck Design: Available in Straight or Round designs. Detachable goosenecks can be optioned for front-loading requirements.
Suspension Styles: American or German type mechanical suspension; Light-duty or heavy-duty upgrades available for weight optimization.
Landing Gear: High-grade JOST or FUWA landing gear, designed to operate reliably in extreme temperatures ranging from -30°C to 120°C.
Tool Box: Customizable Aluminum or Carbon Steel layouts adjusted according to your trailer design.
