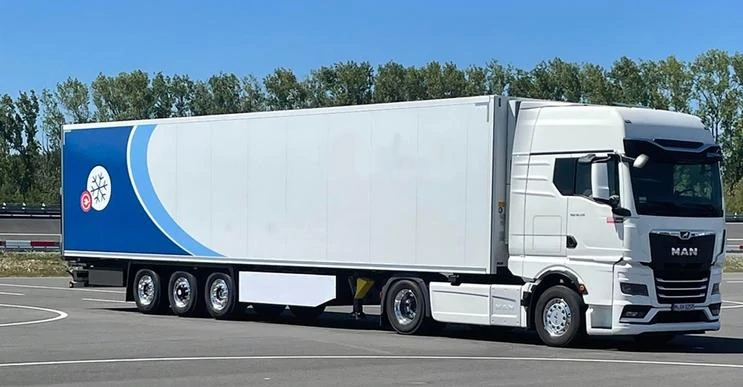

Reefer Semi Trailer

Product Detail

Designed for Temperature-Sensitive Cargo Across Long Distances

Equipped with refrigeration unit and insulated body, it ensures stable temperature control for perishable goods like fruits, vegetables, meat, and pharmaceuticals.

High-Density Insulated Panels Maintain Internal Cooling Performance

The trailer body is made of rigid polyurethane foam sandwiched between fiberglass or aluminum panels, minimizing thermal conductivity and reducing refrigeration energy loss.

Integrated Multi-Temperature Zones Available for Mixed Cargo Loads

Advanced models allow for two or more temperature zones within the same trailer, enabling the transport of frozen and chilled goods together without compromising quality.

Reinforced Floor and Wall Structures Withstand Frequent Loading Cycles

Heavy-duty aluminum flooring and impact-resistant interior panels are designed to handle forklift operations and repeated loading without deforming or damaging the insulation.

Fuel-Efficient Refrigeration Units with Reliable Cooling Cycle

Units from well-known brands like Thermo King or Carrier provide consistent performance, low noise, and energy savings, crucial for long-haul cold chain logistics.

Precise Temperature Monitoring System Enhances Cargo Safety

Equipped with digital control systems and real-time temperature monitoring, the trailer ensures accurate tracking and alert notifications in case of temperature deviations.

Parameter Details
Dimension 13000mm2550mm1800mm (can be customized)
Gross Weight About 9500kg
Loading Capacity 30 ~ 80T
Main Beam Height: 500mm
Box structure high strength aluminum profile, fully enclosed sandwich structure panel, vacuum molding whole plate, no fluorine molding polyurethane foam as internal insulation material
Cooler/Freezer Lumikko/Carrier or others
Axle 3 axle, 13 Ton
Tire 235/75R17.5
Braking System Dual line pneumatic brake system, T30 air chamber, 40L air tanks, Emergency relay valve
Leaf Spring 90mm(W)*13mm(T)*10 Layer
ABS With Wabco ABS, or as per customer choice
King Pin (Option 1) 2.00 inch bolt-in king pin
King Pin (Option 2) 2"/3.5" bolt-in/welded king pin
Suspension Mechanical suspension reinforced type
Landing Gear Two-speed, manual operating, heavy duty landing gear 28T
