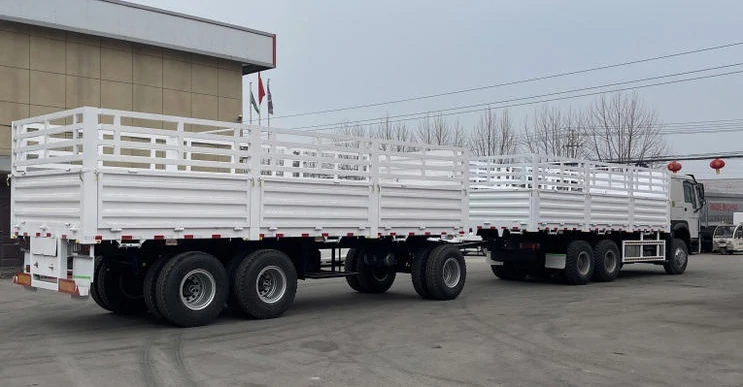

Full Trailer for Sale
Product Description
Independent Front Axle Design Enables Better Maneuverability
Unlike semi-trailers, full trailers come with their own front and rear axles, allowing tighter turning radius and improved control when operating in confined areas or on narrow roads.
Ideal for High-Capacity, Long-Distance Haulage with Frequent Stops
Since full trailers are towed behind a truck or tractor, they are especially efficient for logistics systems with fixed routes.
Balanced Weight Distribution Reduces Stress on the Towing Vehicle
The trailer’s own axle system supports the entire load, minimizing pressure on the truck’s rear axle and extending the service life of both the towing vehicle and trailer components.
Flexible Cargo Body Types for Multi-Purpose Transport Needs
Full trailers can be designed with flatbed, box, curtain-side, or stake bodies, allowing them to carry everything from containers and bulk goods to packaged cargo and pallets.
Compatible with Automatic Coupling Systems for Fleet Efficiency
Many full trailers support fast attachment and detachment, making them suitable for drop and-pick operations, improving trailer turnover and reducing driver wait times at terminals.
Stronger Braking Control with Separate Brake System
Equipped with a dedicated braking system, full trailers ensure safe deceleration even under full load, especially important on long downhill grades or emergency stops.
Specifications
| Parameter | Details |
| Loading Capacity | 30 ~ 100 ton |
| Axle | 2/3/4 axle, BPW/FUWA |
| Dimensions | 7200*2500 * 1550mm (can be customized) |
| Tare Weight | 6.5-7.5T |
| Rim | 8.00 ~ 20/8.5 ~ 20/8.8 ~ 20 |
| Suspension | Mechanical suspension or Air suspension |
| Leaf Spring | 90(width)mm13(thickness)mm10 layer |
| Steel Spring | 8/8/8, 10/10/10, 12/12/12 pieces per axle |
| Main beam | Height Q345 carbon steel |
| Chassis | Upper 14mm, lower 16mm, middle 8mm |
| Side beam | 16mm-25mm channel steel (Material: Q345B carbon steel) |
| Brake chamber | 6 double brake chamber |
| Platform plate | 3mm Checkered steel plate |
| Electrical System | 24V, 7 pin socket, One set 7-core standard Cable |
| Tool Box | 1set standard tool box (waterproof type) |
| Brake system | Dual Line braking system |
| Valve | WABCO/KANGJIAN valve |
Trusted Manufacturer with Custom Trailer Expertise
As a reputable semi trailer manufacturer serving global customers, Fuyuan combines advanced production capabilities, strict quality control, and export-oriented manufacturing standards to deliver dependable trailer solutions worldwide. In addition to standard models, we support custom semi trailer projects tailored to unique transport requirements, including specialized frame dimensions, load capacities, and functional adaptations.
With stable production capacity, flexible OEM support, and responsive engineering services, Fuyuan is committed to providing high-performance, durable, and cost-effective full trailers for distributors, logistics firms, fleet operators, and project-based buyers across international markets.
