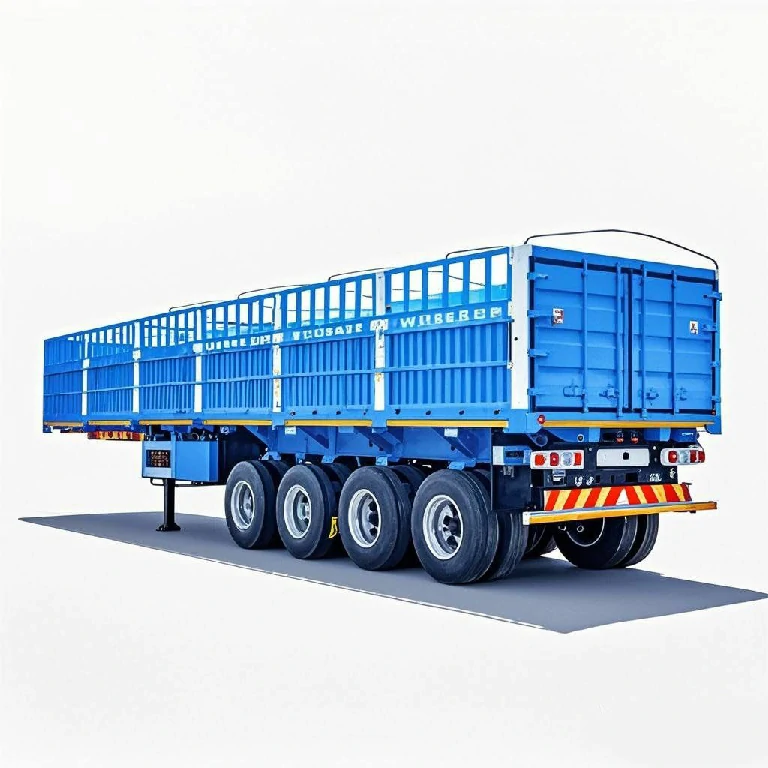

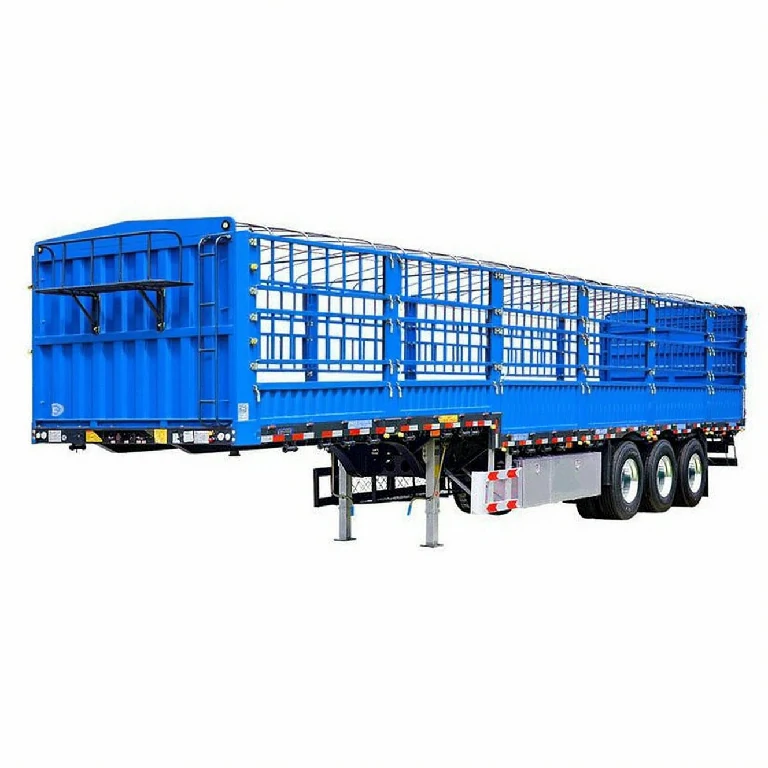

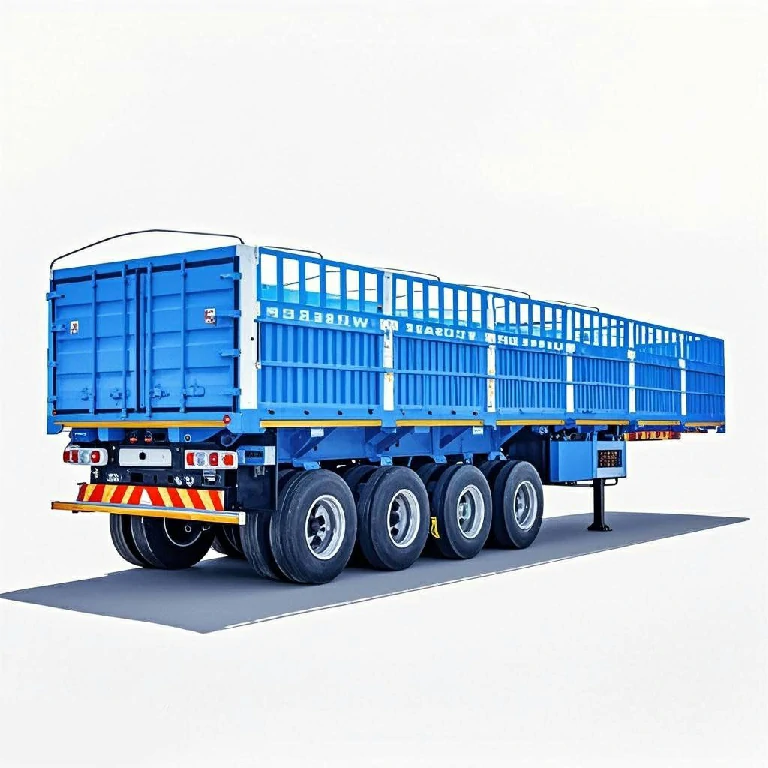

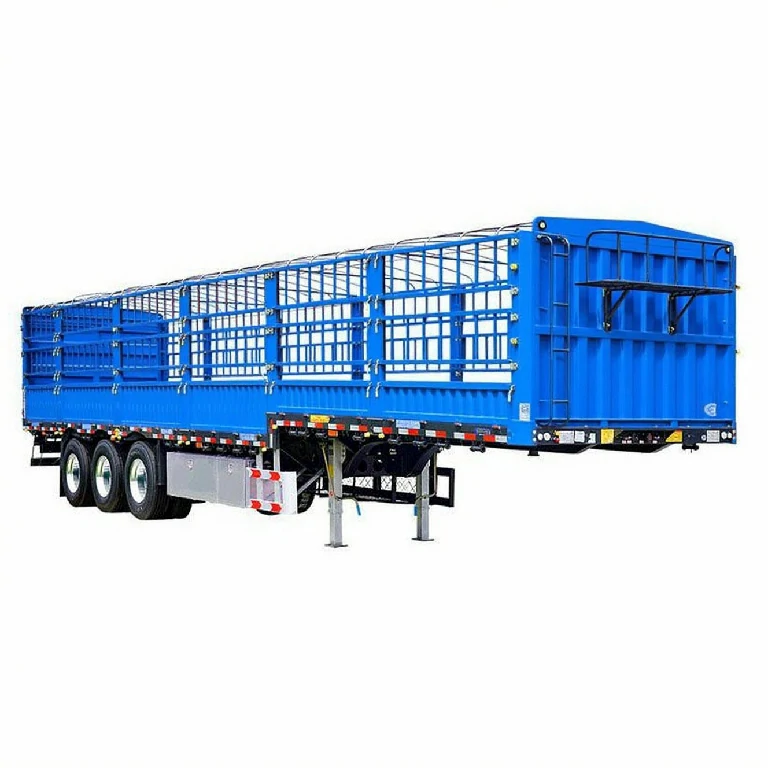

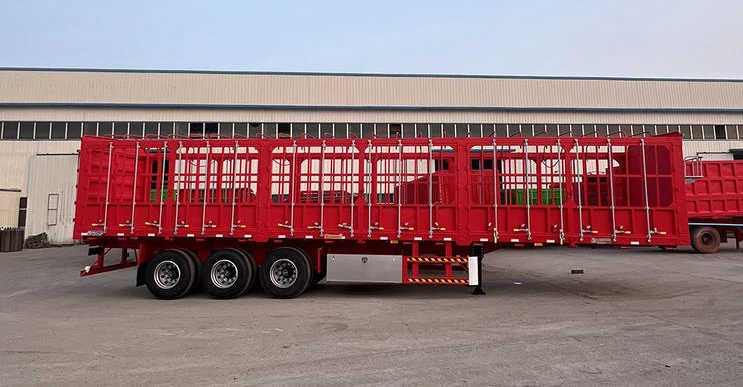

Fence Semi Trailer

Product Detail

Fence Structure Provides Flexible and Secure Cargo Containment

The detachable or fixed side panels help contain bulk, bagged, or irregularly shaped goods, preventing cargo from falling off while allowing for easy manual or forklift access.

Ideal for Agricultural Products, Light Industrial Goods, and Daily Commodities

Widely used for carrying vegetables, grain, textiles, and construction materials, especially in regional logistics and rural distribution where diverse cargo types are common.

Open Top Design Supports Over-Height or Irregular Cargo Loads

Without a roof, the trailer can accommodate tall goods like machinery parts, pipes, or packaged equipment, making it more versatile than enclosed box trailers.

Reinforced Chassis Structure Built for Daily Medium-Heavy Transport

The main frame uses high-strength steel with cross-beam reinforcements to maintain stability and durability under frequent loading cycles and long-haul operations.

Fence Can Be Customized in Height or Removed for Flatbed Use

Many fence trailers feature modular wall systems, allowing users to adapt the trailer as a flatbed when needed, increasing flexibility across multiple cargo scenarios.

Popular in Wholesale, and Multi-Drop Delivery Operations

Its ease of access, cargo visibility, and efficient loading make it ideal for distributors, wholesalers, and fleet operators serving supply chains.

Parameter 30 ~ 50 Ton Model 50 ~ 100 Ton Model
Loading Capacity 30 ~ 50 Ton 50 ~ 100 Ton
Volume 28 ~ 35cbm 35 ~ 45cbm
Axle 3*13/14 Ton, FUWA/BPW 4*13/14 Ton, FUWA/BPW
Tyre 12 pieces, 12R22.5 16 pcs, 12R22.5
Dimensions 12500x 2500 x 3990mm (can be customized)
Inner Dimension 12400x2350x1800mm (can be customized)
Tare weight 11 Ton
Rims 8.5 ~ 20, 9.0 ~ 20
Suspension Leaf spring suspension/air suspension
Brake System Dual line pneumatic brake system with WABCO emergency relay valve
Main Beam Height 500 Q345 carbon steel
Cylinder system Hyva Cylinder with PTO
Kingpin 2" or 3.5" interchangeable, JOST brand
Landing Gear 28 Tons, Two speed manual operation
Electrical System Voltage: 24v; Receptacle: 7 ways (7 wire harness)
Painting All color will be available
Tool Box One tool box with a set of standard trailer tools
