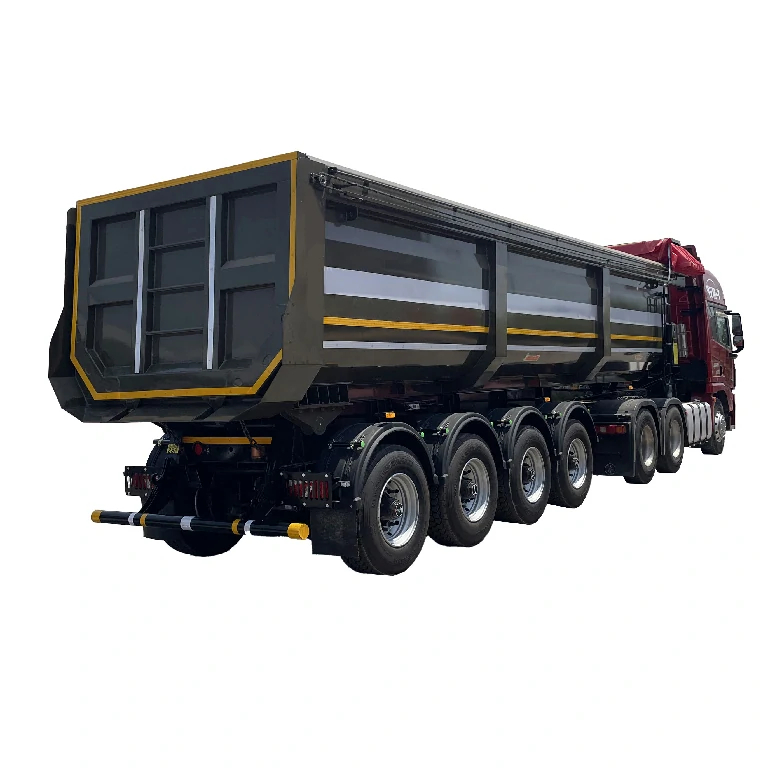

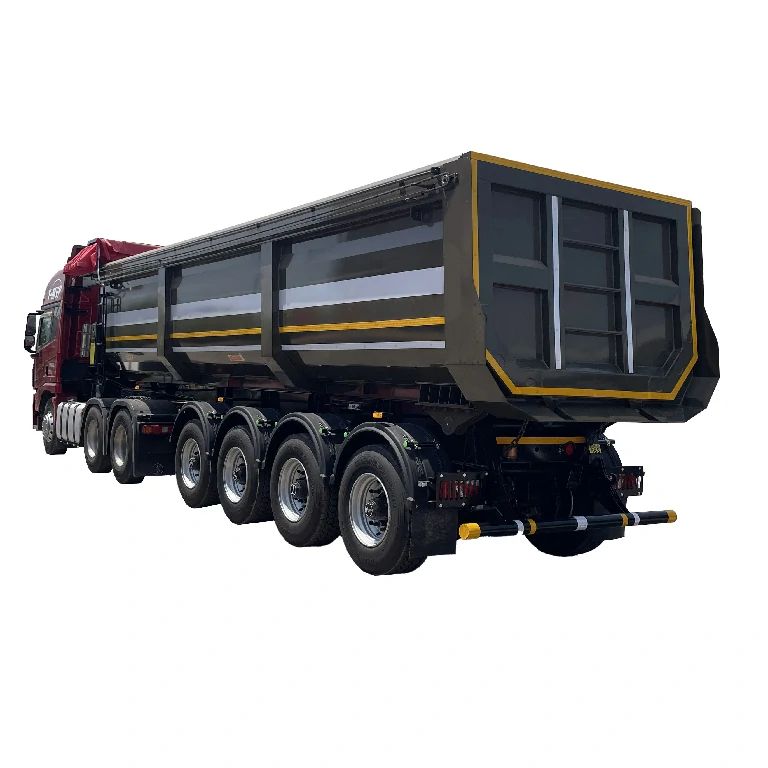

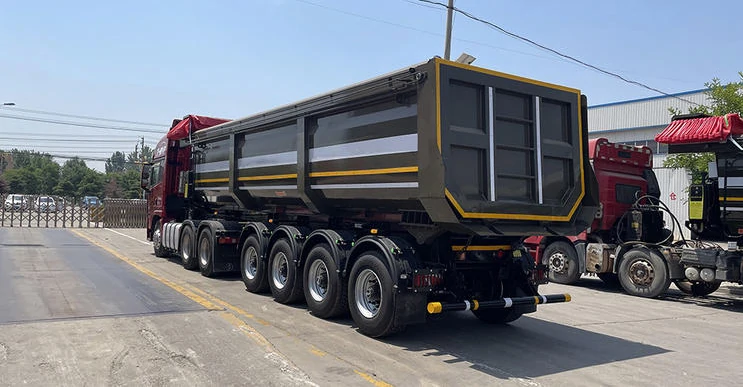

Designed for Fast Rear Discharge of Bulk Construction Materials
The hydraulic lifting system tilts the cargo box from the front, allowing gravel, sand, coal, or demolition waste to be unloaded quickly from the rear in a single dump motion.
Heavy-Duty Body Construction Handles High-Impact Loads Efficiently
The cargo box is reinforced with high-strength steel and internal wear plates to withstand continuous loading and dumping of abrasive materials without cracking or deformation.
Hydraulic System Offers Stable and Controlled Tipping Performance
Fitted with high-capacity front cylinders and a stable lifting mechanism, the trailer ensures smooth and safe rear tipping even under full-load and uneven ground conditions.
Low Center of Gravity Improves Road Stability During Hauling
The structural layout of the frame and suspension system keeps the trailer balanced while driving, reducing the risk of swaying or tipping during high-speed or off-road travel.
Optimized Tailgate Design Prevents Material Spillage and Leakage
Rear doors are sealed or mechanically locked to ensure that bulk materials do not spill during transport, improving load security and keeping roadways clean.
Suitable for Mining, Earthmoving, and Infrastructure Projects
Rear doors are sealed or mechanically locked to ensure that bulk materials do not spill during transport, improving load security and keeping roadways clean.
Specifications
Parameter
30～60 Ton Model
60～120 Ton Model
Loading Capacity
30～60 Ton
60～120 Ton
Axle
3 axle, BPW/FUWA
4 axle, BPW/FUWA
Tyre
12 pieces, 10.00R20
16 pieces, 11.00R20
Dimensions
9000～12000mm × 3000 × 1750mm (can be customized)
Same as left column (can be customized)
Tare weight
10～12 ton
Hydraulic Cylinder
HYVA hydraulic cylinder with one set of PTO
Rims
8.5-20, 9.0-20
Suspension System
Leaf spring Suspension/Air suspension
Brake System
Dual line pneumatic brake system with WABCO emergency relay valve
Main Beam
Height 500mm Q345 carbon steel
Chassis
Upper 14mm, lower 16mm, middle 8mm
Kingpin
2" or 3.5" interchangeable, JOST brand
Twist locks
12 units ISO THT brand
Landing Gear
28 Tons, Two speed manual operation
Electrical System
Voltage: 24v; Receptacle: 7 ways (7 wire harness)
Painting
All color will be available
Tool Box
One tool box with a set of standard trailer tools
Manufacturer & Custom Dump Trailer Solutions
Fuyuan is a professional semi-trailer manufacturer providing reliable dump trailer for sale for construction, mining, and bulk material transport. We also support OEM and project-based custom semi trailer solutions, with flexible configurations, stable quality, and export-ready standards for global customers.
